HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

Screw No. : Single-screw

Automatic Grade : Automatic

Price : US$150,000.00-200,000.00

Payment Terms : L/C,T/T,Western Union

Delivery Time : 60DAYS

MOQ : 1

Material : PP/HDPE

Place of Origin : Qingdao, China

Brand Name : huashida

Field : Drainage/Water Supply/Sewage Discharge/Agricultura

Supply Ability : 30 Set/Year

Certification : CE, ISO9001:2008

Contact Now

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

The HDPE hollow wall corrugated pipes - also known as structured wall pipes - produced by this extrusion line feature a unique structural design that delivers high ring stiffness, excellent impact resistance, and lightweight performance.

These pipes offer outstanding creep resistance, superior external load-bearing capacity, and strong resistance to acids, alkalis, and salts, ensuring a service life of up to 50 years even in demanding environments.

Developed by Qingdao Huashida Machinery Co., Ltd. , this winding pipe extrusion line integrates advanced domestic and international technologies, enabling the production of pipes with diameters ranging from 200 mm to 3000 mm.

Widely used in municipal sewage and drainage systems, it serves as an ideal replacement for traditional cement pipes, cast iron pipes, and other conventional materials. With advantages such as low installation cost, simple operation, convenient connection, and economical construction, this solution offers strong market potential and broad application prospects.

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems
Production Process:
Raw Material → Mixing → Vacuum Feeding → Drying → Single Screw Extrusion → Calibration → Spray Cooling → Traction → Single Screw Glue Extrusion → Winding & Forming → Water Cooling → Cutting → Pipe Bracket → Inspection & Packing



Product Parameters
HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems
Model Pipe Diameter(mm) Extruder Speed of forming Max. output Installed Power dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6
HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

Composition of Equipments
1.1set Single screw extruder with vacuum loader& hopper dryer
2.1set Square tube die head & mould
3.1set Vacuum calibration table
4.1set Water spraying tank
5.1set Hauling machine
6.1set Single screw extruder with vacuum loader & hopper dryer
7.1set Melt adhesive extrusion die head
8.1set Rewinding forming machine
9.1set Cutting machine
10.1set Stacker
11.set Siemens PLC

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket

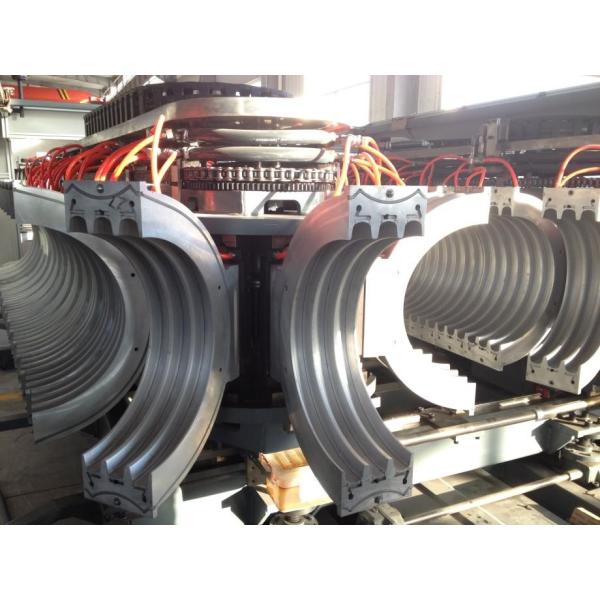

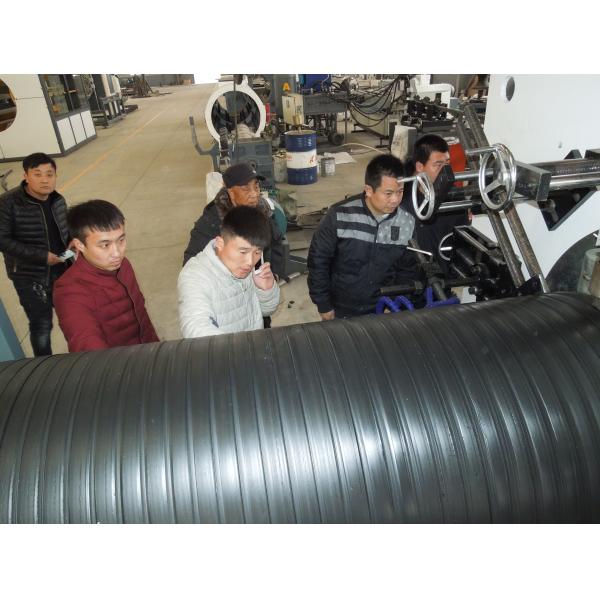

Detailed Photos
HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems​

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems


HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

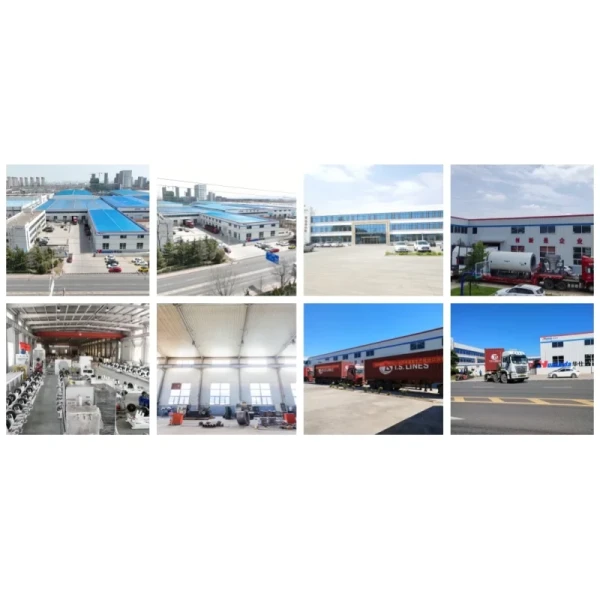

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html

HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.

Qingdao Huashida Machinery Co., Ltd. has been engaged in the development and producing of pipeline anti-corrosion equipment and raw materials since 2003. It is a leader manufacturer of heat-shrinkable sleeve and equipment in China. Huashida brand is favored by domestic and foreign customers. Devices of the equipment design have our patents. We passed ISO9001, ISO14001Environment, ISO45001 health certification. Up to now, more than 500 sets of production lines have been exported to Russia, Kazakhstan, Belarus, Egypt, Iran, Indonesia and other countries. Huashida brand heat shrinkable sleeve equipment in the production process of continuous summary and update has launched the fourth generation of products. The whole production line has reasonable design, intelligent operation, high speed and high efficiency, energy saving and electricity saving material labor cost. Continuous improvement in component design ensures uniform thickness, improved shrinkage, tensile strength and elongation at break. Product quality to meet the needs of different pipeline anti-corrosion demand. We have a professional after-sales service team to provide on-site and online video teaching and training. Help customers solve production problems as soon as possible.

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

Our Team

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

Certifications

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage SystemsHDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems

International Trading show

HDPE Double Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage Systems
